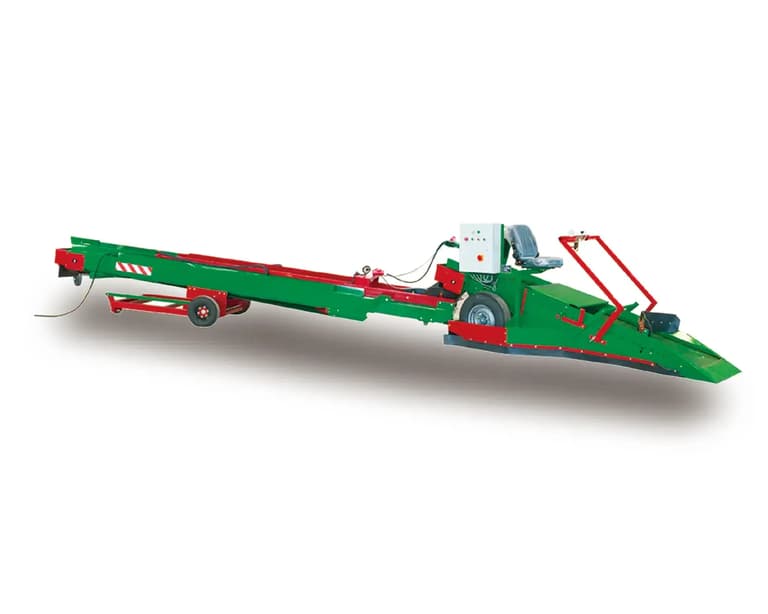

Potato Loading Scooper Introduction
A potato loading scooper is large, mechanized machine equipped with a conveyor belt or other loading mechanism that is used to transfer potatoes from one location to another efficiently and effectively using a conveyor belt system, and it helps to reduce the amount of manual labor that is required for this task. It is typically used in commercial potato farming and processing operations, where large quantities of potatoes need to be transported.
There are several different types of potato loading scoops available, and they can vary in size and design depending on the specific needs of the operation. Some scoops are designed to be used with specific types of conveyor systems, while others are more versatile and can be used with a variety of different conveyors.
Key features and advantages
- Potato loading scooper can save time and labor by allowing one person to easily load potatoes into a truck or storage container.
- Potato scooper can help to prevent damage to potatoes during loading, as they are designed to gently scoop and lift the potatoes without bruising or crushing them.
- Potato loading scooper can reduce the risk of injury for workers, as they allow potatoes to be lifted and transported with minimal physical effort.
- Potato loading scooper can be used in a variety of settings, including fields, warehouses, and storage facilities.
- Potato loading scooper can work along with other conveyor to achieve longer transportation distance.
Technical data
| Model | 5SZ-40 | 5SZ-60 | 5SZ-60X |
|---|---|---|---|
| Conveyor belt width(mm) | 624 | 625 | 625 |
| Extended length(mm) | 10500 | - | 3800 |
| Maximum processing capacity(t/h) | 40 | 60 | 40 |
| Maximum radius of rotation(mm) | 10000 | 130 | 10000 |
| Maximum tilt angle(°) | 130 | - | 130 |
| Maximum unloading height(mm) | 1366 | 1300 | 1300 |
| Minimum unloading height(mm) | 460 | 1000 | 1000 |
| Motor Power(kw) | 6 | 8.1 | 8.1 |
| Potato injury rate(%) | <=1 | <=1 | <=1 |
| Size(mm) | 8000*1660*1525 | 8845*2180*1550 | 8000*1660*1525 |
| Weight(Kg) | 1878 | 1770 | 1878 |
| Conveyor belt power | - | Drum motor | - |
| Conveyor belt speed(m/s) | - | 0-0.85 | - |
| Fuel tank volume(L) | - | 50 | - |
| Ground wheel drive type | - | Hydraulic motor | - |
| Maximum elongation(mm) | - | 3000 | - |
| Power Requirements | - | AC380V,50HZ | - |
| Walking pattern | - | Traction/hydraulic drive | - |
