Piglet Heat Lamp / Incubator

    Piglet Heat Lamp / Incubator

    Piglet Heat Lamp Introduction

    This piglet heat lamp is employing the ion-tech to produce sun-like thermal radiation which can create ideal conditions for rearing animals. In pig farming, the infrared transforms the electric into heat and heat radiation acts directly on the bodies of piglets, reducing the heat waste to help piglets growth and resistance to diseases.



    Infrared Heat Lamp Features

    • High quality: Toshiba lamp filament Toshiba, hard glass (no burst in cold water) and Osram special lamp holder mud
    • Advanced and practical: ion-penetration patented technology, efficiently converting the electric power into heat to promote piglet growth and enhance their immunity
    • Saving energy: the heat radiation converted by infrared acts directly on piglets, reducing heat waste

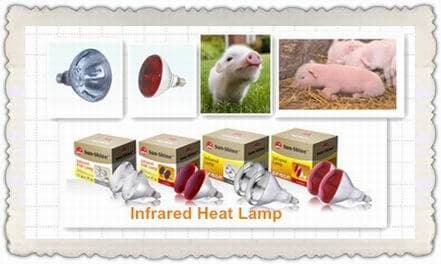

    • Infrared Heat Lamp

      How the Infrared Heat Lamp Work

      The lamp has such excellent penetration effect that the infrared radiation warms not only the surface of the skin directly exposed to the lamp, but the underlying tissue and the muscle layers. As a result, the blood and lymph vessels microcirculation is improved and a greater amount of oxygenated blood is supplied to the cells. So the piglets can grow faster and have greater resistance to infection and illness.

    How the Infrared Heat Lamp Work

    The lamp has such excellent penetration effect that the infrared radiation warms not only the surface of the skin directly exposed to the lamp, but the underlying tissue and the muscle layers. As a result, the blood and lymph vessels microcirculation is improved and a greater amount of oxygenated blood is supplied to the cells. So the piglets can grow faster and have greater resistance to infection and illness.

    Electric Heat Pad Introduction

    Electric heat pad is an economical cold-defending tool for lactational animals, such as pigs, sheep, dogs and rabbits, etc. It has electric heating elements inside and high-quality rubber or FRP with moderate hardness outside, making a comfort, safe and healthful condition to ensure a high survival rate.

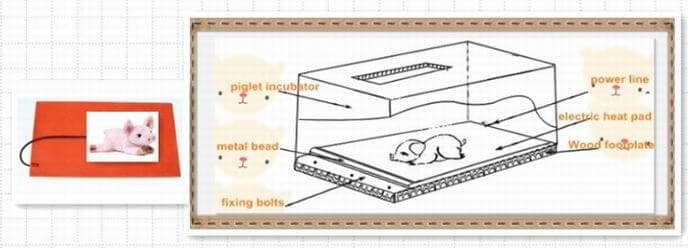

    piglet heat pad



    Features of Electric Heat Pad for Lactation Piglets

    • Good thermal conductivity, short time heating-up and even temperature distribution, completely suitable for piglets ventral temp.
    • Made of pore-free material, anti-corrosion and easy to do clean and thorough clean and sterilization.
    • Low power consumption and much more heat efficiency than infrared lamp and far-infrared electric heater.
    • Equipped with switch to control temp; single-phase ac (alternating current) 220V, 50HZ.
    • Simple maintenance, available for reuse.

    How to Use Electric Heat Pad

    Spread the pad on the floor or in the incubator; preheat (120W) for half an hour (until piglets do not flock together); then turn the switch to 60W for heat preservation.

    • piglet heat pad

      Cautions for Safe Electric Heat Pad Operation

      • Single-phase ac 220V/50HZ is the only choice for power supply.
      • There are two heating circuits and one is for spare use, but these two circuits are definitely forbidden to work at the same time.
      • An electric-leakage protection switch should be added in the circuit; an insulation device should be added on the spring of the pad external.
      • Do not pull the spring and lead wire when moving and using the pad.
      • Do not punch holes and drive nails on the pad.
      • It is better to use the pad with incubator to avoid piglets biting the pad.
      • If no incubator, a sub-plate should be made; the pad should be protected by the trim strip; the spring also should be protected with insulating material.

    Piglet Incubator Introduction

    It is an important part to provide the piglets a better living environment with appropriate temp and the economical piglet incubator combined with infrared heat lamp or electric heat pad is an ideal way to produce heat for piglets.

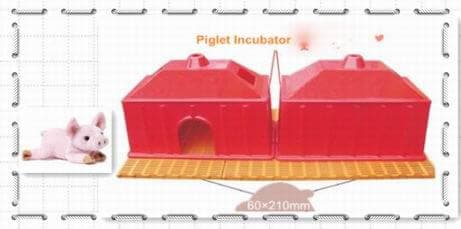

    Piglet Incubators



    Piglet Incubator Features

    • It should be used with infrared heat lamp or electric heat pad to ensure enough heat supply.
    • It is convenient to operate for its lamp hole, viewport, movable cover and door for piglets move in and out.
    • The piglet incubator size can be customized; its materials can be plastic, PVC, FRP, etc.
    • Easy installation, elegant and reasonable design, good insulation, high quality.
    • Anti-corrosion, anti-aging, safe and reliable performance and easy to clean.

    Infrared Heat Lamp Specification

    Model P38100R P38175R P38100C P38175C
    Description
    PAR-100W
    PAR-175W
    PAR-100W
    PAR-175W
    Life time 5000h 5000h 5000h 5000h
    Volt 120V240 120V240 120V240 120V240
    Color Red Red White White
    2 lamps/pack
    paper box
    paper box
    paper box
    paper box
    QTY/CTN 32pcs 32pcs 32pcs 32pcs
    CTN size 505*380*330mm 505*380*330mm 505*380*330mm 505*380*330mm
    Remarks

    Energy saving 30%

    Durable,
    excellent heat conduct,
    improved solid
    base connection

    Energy saving 30%

    Durable,
    excellent heat conduct,
    improved solid
    base connection

    Energy saving 30%

    Durable,
    excellent heat conduct,
    improved solid
    base connection

    Energy saving 30%

    Durable,
    excellent heat conduct,
    improved solid
    base connection
    Model
    H125100R
     H125150R H125250R H125100C H125150C H125250C
    Description 100W 150W 250W 100W 150W 250W
    Life time 5000h 5000h 5000h 5000h 5000h 5000h
    Volt
    120V240
    120V240
    120V240
    120V240
    120V240
    120V240
    Color Red Red Red White White White
    2 lamps/pack
    paper box
    paper box
    paper box
    paper box
    paper box
    paper box
    QTY/CTN 32pcs 32pcs 32pcs 32pcs 32pcs 32pcs
    CTN size 510*415*380mm 510*415*380mm 510*415*380mm 510*415*380mm 510*415*380mm 510*415*380mm
    Remarks

    Hard glass

    waterproof,
    improved solid
    base connection

    Hard glass

    waterproof,
    improved solid
    base connection

    Hard glass

    waterproof,
    improved solid
    base connection

    Hard glass

    waterproof,
    improved solid
    base connection

    Hard glass

    waterproof,
    improved solid
    base connection

    Hard glass

    waterproof,
    improved solid
    base connection

    Electric Heat Pad Specification

    Model
    Size(mm)
    DRB1
    500*900
    DRB2
    900*1200
    DRB3
    700*1800

    For any enquiries, please fill in contact form.
    Thank you for your cooperation.
