Square-shape Negative Pressure Fan Introduction

Good quality fans are essential for proper performance of mechanically ventilated swine facilities. Featured by low noise, large CFM supply and easy installation. this negative pressure fan is an ideal ventilating-cooling equipment in piggery, stock barns, warehouses, offices, greenhouses and animal shelter, etc.

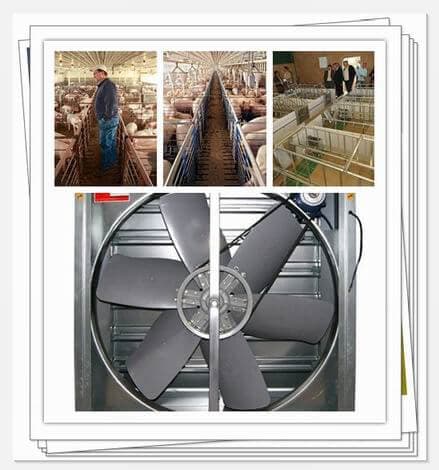

Advantages of Negative Pressure Fan for Piggery CoolingNegative Pressure Fan for Piggery 0

1. Particular V-shape bracket: strong and durable;
2. Pure-copper motor with national standard and imported bearing: uniform rotating speed, large CFM supply and low noise;
3. High-tech composite polymer nylon blade: good flexibility and corrosion-resistance;
4. Automatic on-off shutters: dustproof and waterproof;
5. Remarkable cooling effect, high air cleanliness and stable performance;
6. Low investment, Eco-friendly.

Negative-Pressure Fan Working Principle

1. Ventilating Principle

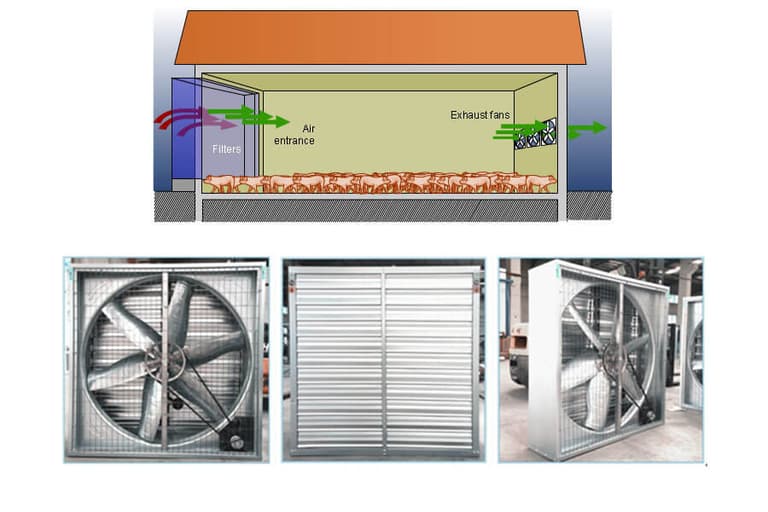

The negative-pressure fan is used to exhaust air indoor, so the indoor air pressure is lowered, then there is a negative-pressure zone and the air outdoor will flow into the house for the air pressure difference;

2. Cooling Principle

A. Cooling by air exchange: the fan exhausts the hot air indoor to even the temperature between indoor and outdoor;
B. Combine with the evaporative cooling pad to reach a good ventilating-cooling effect.



negative__pressure_cooling_fanImportant Terms for Fan Selection Principle

★ Air Delivery: It is the amount of air that a fan will move under different conditions; also expressed as volume of air movement per unit time and the standard unit is cubic feet per minute (cfm).
★ Static Pressure: It is the pressure difference that a fan creates between the inside and outside of a mechanically ventilated structure. Fans create a vacuum in a house by exhausting air. The indoor environment with a lower pressure than outdoors will draw air in. This is a negative pressure system.
★ Fan Efficiency: It is the air delivery amount that a fan will provide per unit of electricity used and the standard unit is cubic feet per minute per watt (cfm/W).

Negative-Pressure Fan Routine Maintenance

1. Regularly clean and maintain fan blades and shutters;
2. If the belt has loosened, it should be adjusted and reset in time;
3. Add lube if the motor bearing makes strange sounds;
4. Regularly check the motor to ensure its good working condition.

Square-shape Negative Pressure Fan Parameters

Model
 Fan blade
dia.
Rotation speed
of fan blade
Rotation speed
of ventilator
Air volume
Total pressure
Input power
Rated voltage
H*W*T
1000#
1000mm
600turns/min
1350turns/min
32500m³/h
70Pa
750w
380v
1100*1100*400mm
1250#
1250mm
439turns/min
1400turns/min
44000m³/h
56Pa
1100w
380v
1380*1380*400mm
