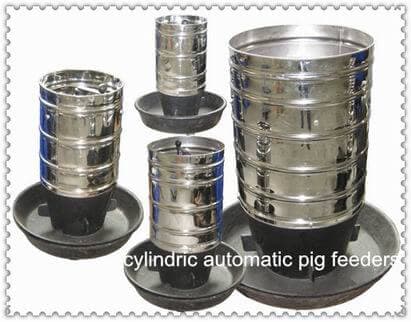

The Introduction to Cylindric Feeder

Automatic cylindric pig feeder consists of feed cylinder, base plate and regulating stem, mainly used for feed fattening pigs.
When pig wish to eat food, it will push the wheel of the trough, and the wheel will deliver the feed into the trough. At the same time, the agitator bar will be driven by the wheel,so that the feedstuff will not become cake type. The speed of feedstuff delivery can be adjusted, convenient to control feeding speed and feeding time in the whole piggery.

  • cylindrical_automatic_pig_feeders

    Advantages of Automatic Pig Feeder

    • The round shape pig feeder has larger feeding spaces than square ones.
    • The round shape pig feeder can save more floor spaces than square ones.
    • The mechanical feed delivering device can make less wastes than natural flowing ones.

Dry Wet Pig Feeder

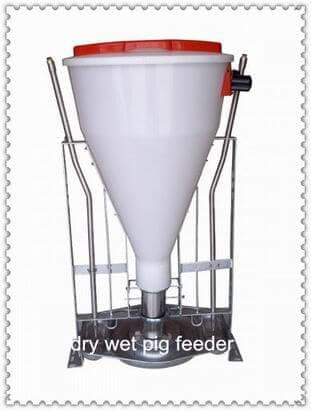

Introduction to Dry Wet Pig Feeder

The dry wet pig feeder integrates automatic feeding & drinking function. It is suitable for both powder feedstuff and feed pellets. The feed can be delivered evenly through the delicate valve, and it also has automatic regulation device. The drinker can make pigs do less running between feeder and waterer, and benefit for a good digestion.

The Working Process of Dry Wet Pig Feeder

The dry-wet feeder include hopper and vertical tube. The bottom of the hopper connects with vertical tube, and there’s also a plug at the bottom. The plug is fasten to a straight-bar, and the straight-bar goes through the vertical tube and connects with a dam-board. When pig gets hungry, it will push the dam-board, and the dam-board uplifts the plug to let the feed go through the tube. When pig is eating, all devices go back to their normal position and the delivery stops. And so forth until the pig is full. It will decrease the labor intensity of the workers, avoiding the feedstuff waste

  • dry_wet_pig_feeder

    Dry Wet Pig Feeder Features

    • One pig feeder can meet the demand of 40 pigs of 100kg each.
    • Our design can improve the pigs’ feeding intake of more than 20% and make them marketable 7 days earlier.
    • The bottom kerf and doser are made of stainless steel, which is easy to clean and disassembly.
    • Unique feeding mode, which is suitable for both piglets and fattening pigs. It can decrease the waste of the feed for the most part.
    • It has double-canopy and medical entrance, which can avoid the pigs pilfer feed and pollution efficiently.
    • It will get better performance if combined with automatic charging systems.

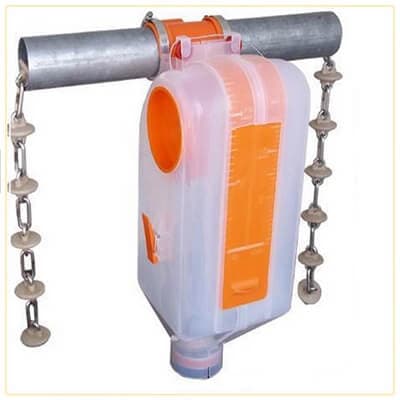

Plastic Pig Dispenser Drop Feeder

  • pig-feeder-dispenser-(7)

    Brief lntroduction

    • Material edible PP plastic,high bearing and anti-corrosion ability, durable
    • Automatic operation, saving labor, decreasing cost;
    • Can adjust from 1Liter to 8 Liter,more accurate,more efficient;
    • Capacity 8liter ;
    • Feeding speed can be set, saving feed and also keep pig healthy;
    • Robust frame structure and easy cleaning;
    • Easy to install.

Technical Data

Product name plastic pig feed barrel
Material Plastic
Capacity 6L 8L
Pipe Dia 60mm
Adjustable Volcume 1-8l
Packing 4pcs/carton
Application Pig Farm

For any enquiries, please fill in contact form.
Thank you for your cooperation.

Advantage products

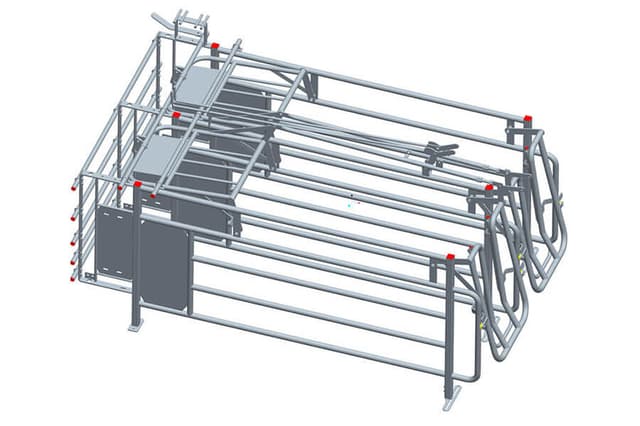

Pig Gestation Crates
