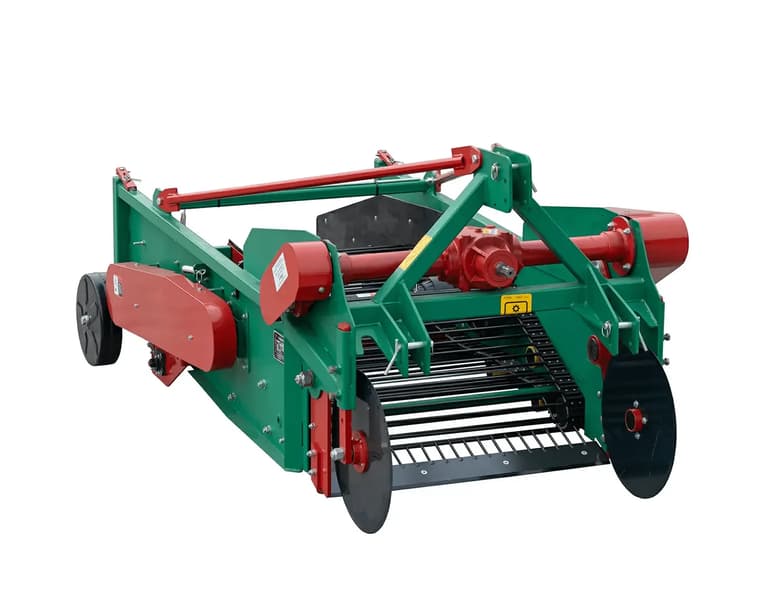

Compact Potato Harvester Introduction
Compact potato harvester is a machine specifically designed for harvesting potatoes from a field. It is typically used on small to medium-sized fields and is capable of working in either one or two rows at a time, which depends on the specific model. In a configuration where the potatoes are laid on the ground rather than collected, the compact potato harvester is designed to work in ridge widths ranging from 80 to 120cm, making it well-suited for small to medium-sized fields with narrow ridge spacing. The compact potato harvester may also include additional features such as automatic grading and sorting capabilities, and the ability to remove weeds and other unwanted plants during the harvesting process.
Working principal：
The compact potato harvester typically consists of a tractor-mounted frame with a series of digging tines or plows that are used to loosen the potatoes from the ground. The potatoes are then lifted to the surface by the tines and laid out in a single row on the ground.
Key features and advantages
- Efficient operation: Compact potato harvesters are designed to be highly efficient, with a series of mechanical components that work together to efficiently dig up and collect the potatoes. This can result in faster harvesting times and higher yields.
- Easy to use: Compact potato harvesters are typically easy to operate and maintain, making them a good choice for farmers who do not have a lot of experience with larger, more complex harvesting equipment.
- Cost-effective: Compact potato harvesters are generally less expensive to purchase and operate than larger harvesters, making them a cost-effective option for small to medium-sized farms.
- Versatility: Compact potato harvesters are capable of working in 1 ridge 1 or 2 row configurations, making them suitable for use in a range of different field conditions.
- Lightweight and maneuverable: Compact potato harvesters are typically lightweight and easy to maneuver, making them well-suited for use in fields with uneven terrain or other challenges.
Technical data
| Model | 4UX-170A | 4UX-180B | 4UX-180E | 4UX-200 |
|---|---|---|---|---|
| Applicable row spacing(mm) | 850 ~ 900 | 900 ~ 1000 | 850 ~ 900 | 1000 ~ 1100 |
| Digging Depth(mm) | 150 ~ 300 | 150 ~ 300 | 150 ~ 300 | 150 ~ 300 |
| Matched Power(HP) | 120 ~ 160 | 120 ~ 160 | 160 ~ 180 | 140 ~ 200 |
| Potato injury rate(%) | <=1.5 | <=1.5 | - | <=1.5 |
| Probability of potatoes being exposed on the ground(%) | >=96 | >=96 | - | >=96 |
| Size(mm) | 3875*2110*1255 | 3880*2215*1215 | 4350*2175*1300 | 3880*2568*1260 |
| Skin breaking rate(%) | <=2 | <=2 | - | <=2 |
| Structure type | Mounted | Mounted | Mounted | Mounted |
| Weight(Kg) | 1580 | 1630 | 1800 | 1867 |
| Working Rows(Ridges/Rows) | 2 | 2 | - | 2 |
| Working efficiency(ha/h) | >=0.46 | >=0.53 | >=0.5 | >=0.53 |
| Working width(mm) | 1600 ~ 1800 | 1700 ~ 1900 | - | 1900 ~ 2100 |
| Digging shovel type | - | - | Fixed Combination Shovel (Split Shovel) | - |
| Mesh Screen Form | - | - | One Mesh Screen, 50 Pitch | - |
| Shaft speed(r/min) | - | - | 540 | - |
| Type of Cleaning and Separating Device | - | - | Conveyor Chain Grid Screen | - |
