Liquid Fertilizer Spreaders Introduction
Key features and advantages
- Powerful Performance: Driven by the tractor's rear output shaft, ensuring efficient operation and stable performance.
- Imported Components: Utilizes high-quality imported main pumps and control systems, guaranteeing reliability and efficiency during fertilization.
- High-Strength Structure: The tank is made from specialized high-strength steel, enhancing tensile strength and durability to withstand harsh working conditions.
- Safety Design: Built-in multi-level overload protection reduces the risk of equipment failure, ensuring safe operation.
- User-Friendly: The hydraulic control system simplifies the spraying process, enhancing ease of use and flexibility.User-Friendly: The hydraulic control system simplifies the spraying process, enhancing ease of use and flexibility.
- Real-Time Monitoring: The liquid level indicator provides instant capacity information, helping operators adjust fertilization amounts promptly.
-
Efficient Power System

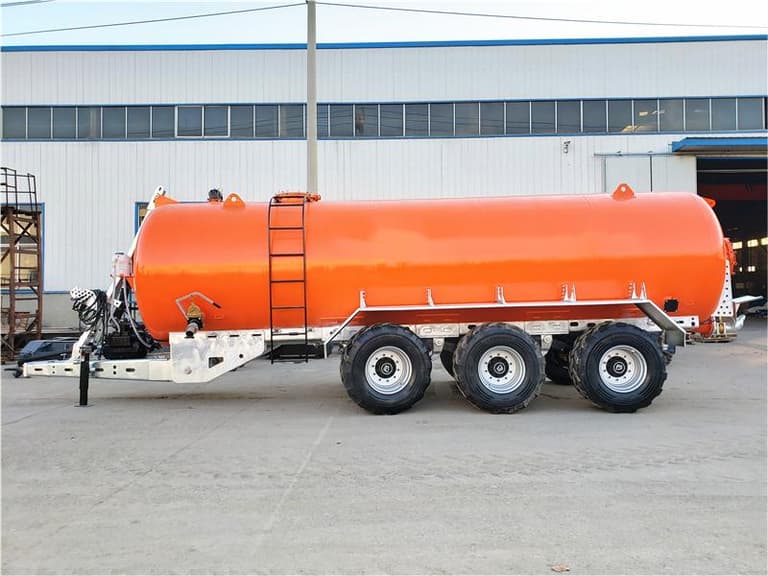

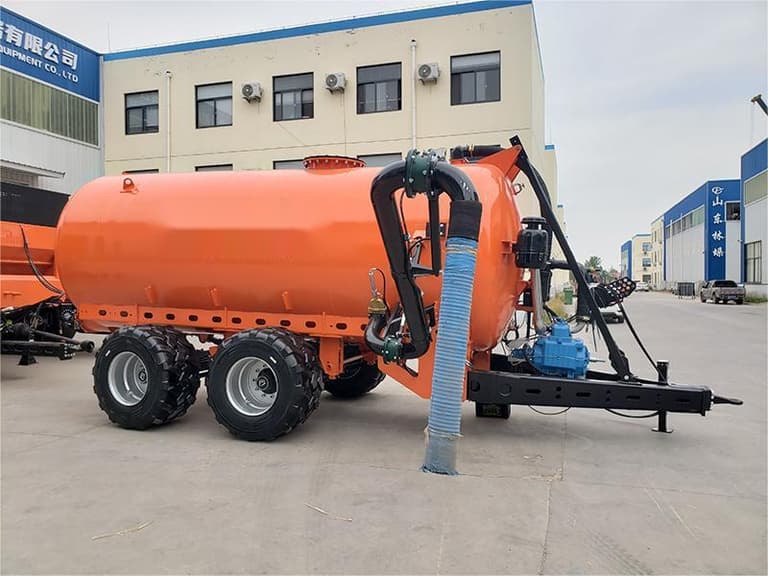

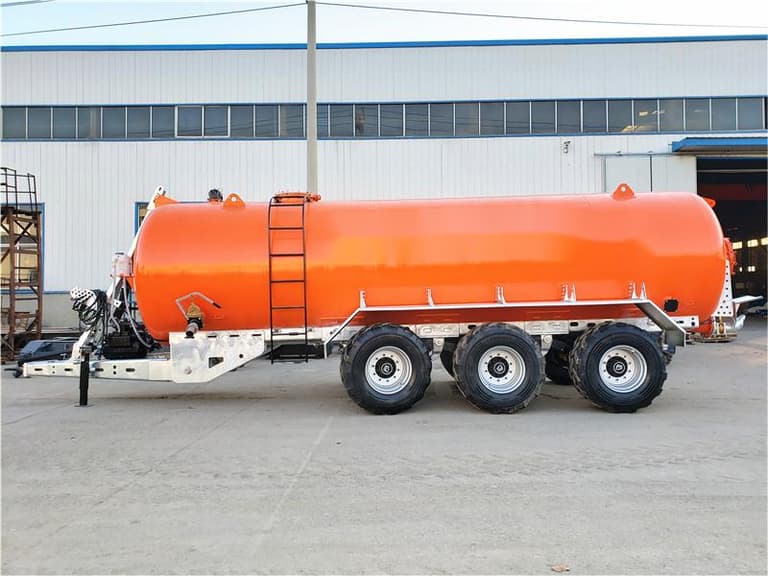

The 2FYP series liquid fertilizer applicator (fertilizer tank trailer) is powered by the rear output shaft of a tractor, driving a high-efficiency vacuum pump to perform the tasks of suction and spraying. This system ensures high efficiency and continuity during the fertilization process, providing users with a reliable working experience. -
High-Quality Imported Components
Key components of this fertilizer tank trailer, including the main pump, control valves, and load-bearing axles, are all sourced from imports, ensuring stable and reliable performance. This design not only enhances the operational stability of the machine but also significantly reduces the failure rate, allowing users to work with peace of mind. -
Durable and Safe Design
The tank is made of specialized high-strength steel for pressure vessels, with both interior and exterior coated with excellent anti-corrosion and acid-alkali resistant coatings, ensuring durability and corrosion resistance over long-term use. Additionally, the tank features a robust anti-surge baffle inside, further enhancing the equipment's safety and longevity. -
User-Friendly Features
The fertilizer applicator is equipped with a liquid level indicator, allowing operators to monitor changes in the tank's liquid capacity in real-time, ensuring accurate control of fertilization amounts. The design also includes a multi-level overload protection system, effectively safeguarding the main pump, tank, and pipes, thus improving operational safety and convenience.
Technical data
| Model | 2FYP-10 | 2FYP-12 | 2FYP-16 | 2FYP-20 | 2FYP-24 | 2FYP-28 | 2FYP-35 | 2FYP-6 | 2FYP-8 |
|---|---|---|---|---|---|---|---|---|---|
| Matched Power(HP) | 100 ~ 150 | 120 ~ 160 | 160 ~ 220 | 200 ~ 260 | 240 ~ 340 | 260 ~ 360 | 350 ~ 450 | 70 ~ 100 | 80 ~ 120 |
| Net Capacity(m³) | 10 | 12 | 16 | 20 | 24 | 28 | 35 | 6 | 8 |
| Size(mm) | 7200*2670*2930 | 8400*2605*2850 | 870*2900*3100 | 9200*3000*3300 | 10050*3000*3200 | 11200*3000*3200 | 13800*3000*3800 | 6700*2320*2300 | 6800*2690*2600 |
| Spreading Width(m) | 10 ~ 20 | 10 ~ 20 | 10 ~ 20 | 10 ~ 20 | 10 ~ 20 | 10 ~ 20 | 10 ~ 20 | 10 ~ 20 | 10 ~ 20 |
