Medium-Size Potato Combine Harvester

Medium-Size Potato Combine Harvester

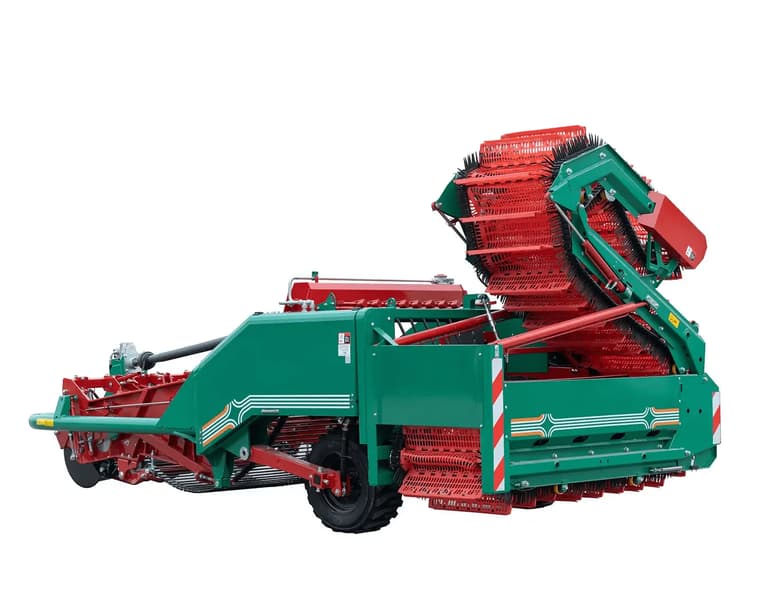

Medium-Size Potato Combine Harvester Introduction

A potato combine harvester is a large agricultural machine used for harvesting, threshing, and cleaning potatoes. It is designed to efficiently and effectively remove potatoes from the ground, separate the potatoes from any debris or dirt, and collect them for further processing or transport, making them an essential piece of machinery for commercial potato farming operations.

The process of operation:
The structure of a potato combine harvester typically consists of a series of conveyor belts, augers, and brushes that are used to loosen the potatoes from the soil and separate them from any debris or dirt. The harvested potatoes are then conveyed onto a trailer or other vehicle for transport to storage or processing facilities. Potato combine harvesters are typically pulled by tractors or other large vehicles and are commonly used on commercial potato farms. Some potato combine harvesters may also be equipped with additional features such as grading or sorting systems to separate the potatoes based on size or quality.

A side-discharge potato harvester is typically connected to a potato combine harvester in a way that allows the two machines to work together to achieve larger-scale potato harvesting. This can be done through a variety of methods, depending on the specific design of the potato combine harvester and the side-discharge potato harvester.



Medium-Size Potato Combine Harvester Advantages

  • Increased efficiency: A potato combine harvester is designed to efficiently and effectively harvest, thresh, and clean potatoes from the ground. Its specialized design and features allow it to quickly and accurately remove potatoes from the soil and collect them for further processing or transport.
  • Enhanced potato quality: The potato combine harvester is equipped with cleaning and threshing mechanisms that help to improve the overall quality of the harvested potatoes, ensuring that only the highest quality potatoes are collected for further processing or transport.
  • Easy to operate: The potato combine harvester is typically designed with user-friendly controls and features, making it easy to operate even for those with limited experience.
  • Greater flexiability: A side-discharge potato harvester is typically connected to a potato combine harvester in a way that allows the two machines to work together to achieve larger-scale potato harvesting.

Medium-Size Potato Combine Harvester Common Specifications and Parameters

Model PEPCH-170C
Size(mm) 6300×3750×2560
Weight(kg) 3276
Working Rows 2 ridges 2 rows
Working Width(mm) 1700
Applicable ridge width(mm) 800~900
Digging depth(mm) 150~300
Productivity(hm2/h) 0.33~0.46
Loading efficiency(t/h) 60
Maximum loading height(mm) 2940
Linkage Trailed
Matched power(kw) ≥74.5
Matched power(hp) ≥100



Technical data

Model4UZ-80
Depth Limiting Mechanism TypeDepth-limiting wheel
Digging Depth(mm)150 ~ 350
Digging shovel typeFlat shovel type
Engine Rated Power(kw)25.8
Engine Rated Speed(r/min)2400
Potato Unloading MethodInstant bagging
Size(mm)4150*2050*2200
Speed of walking(km/h)<=1
Stem and Vine Removing DeviceManually assisted
Structure typeSelf-propelled
Track Gauge(mm)780
Track Ground Contact Length(mm)1250
Track MaterialRubber
Track Shoe Width(mm)230
Type of Cleaning and Separating DeviceVibrating sieve
Type of Conveying DeviceRod-chain type
Walking patternCrawler (track) type
Weight(Kg)1500
Working efficiency(ha/h)<=0.053
Working width(mm)700 ~ 900
