Rotary Rake
- Working width two single swaths (m): 3.40–6.20
- Working width one double swath (m): 6.00
- Rotor diameter (m): 2.85
The Rotary Rake
DFRR-6.2 Rotary Rake can collect the cut and dried grass into neat and fluffy grass strips. The spring tine moves gently during operation, so there is less loss of flowers and leaves.
The Advantage of Rotary Rake
-
Transport: All spring tine arms are removable, hydraulic lift of rotors
-
Height adjustable tandem axle, swath curtain, road safety and lighting equipment
-
2 modular rotors with 20 arms and 80 spring tines make either a one double swath or two single swaths.
-

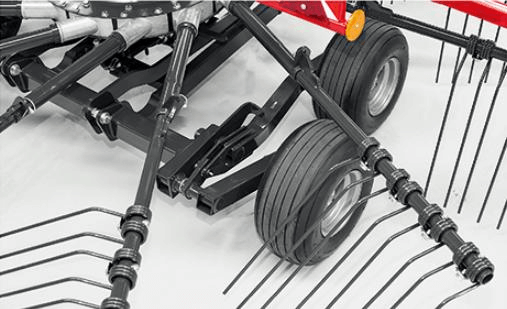

The innovative tandem axle and 3D pivoting linkage of the rotor to the frame allows DFRR-6.2 Rotary Rake to adapt to any kind of terrain.
-
Ideal ground contour following due to pivot mounting of the rear rotor with a parallelogram frame.
-
The drawbar of the rake is connected to the lift link of the tractor which allows the machine to follow the tractor perfectly and gives the machine a smaller turning circle.
-
Hydraulically manipulating the rear rotor from the tractor cabin saves time and effort.
Rotary Rake Common Specifications and Parameters
| Model | DFRR-6.2 |
|---|---|
|
Working width two single swaths (m)
|
3.40-6.20 |
| Working width one double swath (m) | 6.00 |
| Rotor diameter (m) | 2.85 |
|
Transport width (m)
|
1.73 |
| Machine width (m) | 2.99 |
| Weight (kg) | 1480 |
| No. of spring tines per arm (machine) | 4(80) |
| Tyre size | 18*8.50-8 4Ply |
| Required tractor power (kW/HP) | 30/41 |
| PTO rotation speed (rpm) | 540 |
| Safety clutch on PTO shaft (Nm) | 900 |
| Capacity (ha/h) | 7 |
|
Height (m)
|
1.53 |
| Length (m) | 8.23 |
| Assembly time (h) | 8 |
