The Round Baler
DFRB-1.4D Round Baler required wheeled tractors with more than 100 HP and operated by one driver. It is suitable for operation in all kinds of natural grassland, planting grassland and flat farmland. It is also suitable for fixed operation fed manually or by other means on the site.
Key features and advantages
- Efficient Power: The DFRB-1.4D round baler requires a wheeled tractor with over 100 HP, ensuring robust power to handle various grasslands and farmlands.
- High Collection Efficiency: Equipped with a pickup device featuring 48 spring tines, it is solid and reliable, enhancing collection efficiency and ensuring clean material gathering.
- Simplified Operation: The integrated feeding rotor and auger structure offer a simple and stable transmission system, reducing operational complexity.
- Safe and Reliable Wrapping System: The net wrapping system is mechanically driven, with a brake disc that allows for safe and reliable baling and clean net cutting.
- Convenient Control: The cabin features a locking hook control system, making the operation straightforward and enabling the driver to work efficiently.
-

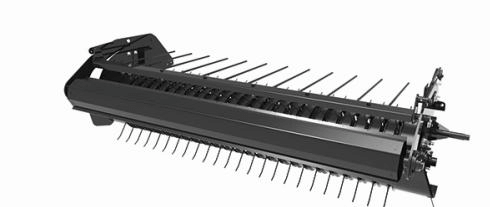

The pickup device made for 48 spring tines, solid and reliable -- easier and faste changing, higher picking efficiency, and cleaner material collection.
-

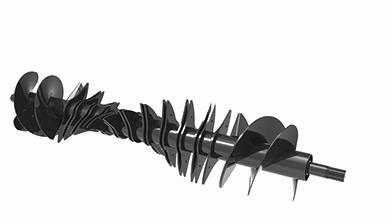

Integrate feeding rotor and auger structure, simple and stable transmission.
-

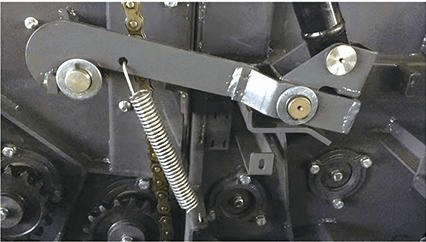

The cabin is controlled by locking hook, simpler control system and easier operation
-

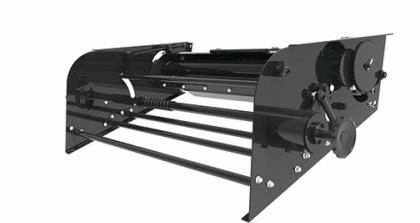

The cutter of the net wrapping system is driven mechanically, safety and reliable. Brake disc makes the bale rotate and stop freely, net cutting clean and clear.
Technical data
| Model | DFRB-1.4D |
|---|---|
| Bale dimension(mm) | 1250*1200 |
| Bale room dimension(mm) | 1200*1400 |
| Distance between tines(mm) | 67 |
| Lifting adjustment method | Hydraulic |
| Lifting adjustment range(mm) | 200 |
| Matched Power(HP) | 97 ~ 100 |
| Max. Radius of gyration of tine(mm) | 210 |
| Number of roller | 18 |
| Profile modeling | Floating spring |
| Rotation speed(r/min) | 137 |
| Size(mm) | 4100*3010*2300 |
| Transmission | Chain |
| Weight(Kg) | 3660 |
| Working width(mm) | 2250 ~ 2270 |
