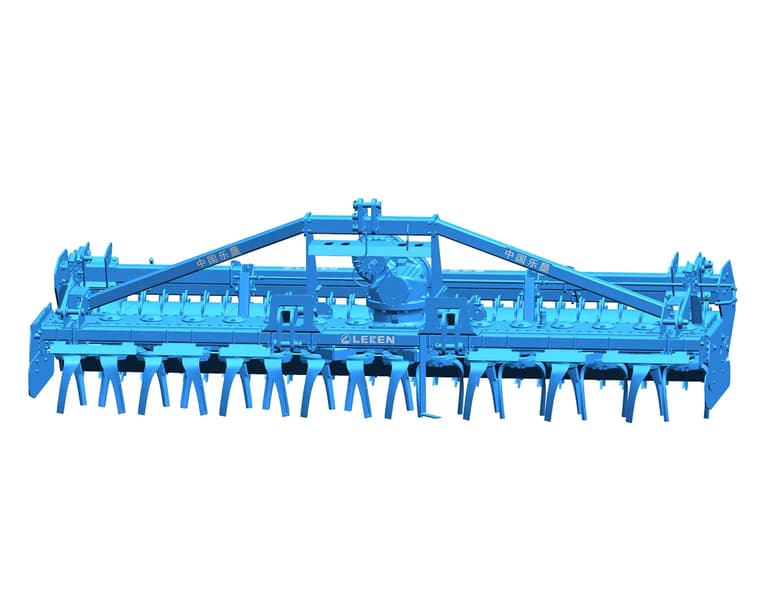

Power Harrow
- Working width(mm):3000,4000
- P.T.O. shaft rotations(rpm/min):270～500
- Working depth(mm):100～180,270～500
Power Harrow Introduction
A power harrow is an agricultural tillage and high-efficiency machine that can complete the tillage preparation of a seedbed in one pass and is especially effective at preparing the soil for planting by breaking up clods, reducing weeds, and leveling the ground. It is equipped with a set of rotating blades that cut through the soil, creating a series of furrows that help to aerate the ground and improve its structure.What's more,this can help to improve the moisture retention of the soil, reduce the risk of erosion, and create a more conducive environment for plant growth.
Power harrows are available in two sizes: compact and heavy-duty. The compact power harrow has a working width of 2.0m to 3.0m, while the heavy-duty power harrow has a working width of 3.0m to 4.0m. Some power harrows are also available with a folding design, which allows them to reach a working width of up to 6 meters.And the operation efficiency(hm2/h) is from 1~3.1, which can reduce the amount of time and labor required for tillage, and increase the productivity of the land.
In addition to its tillage capabilities, the power harrow is also equipped with a cage roller or packer roller. This helps to evenly distribute the weight of the harrow and improve its performance, making it suitable for use in a variety of farming operations.
Power Harrow Advantages
- Heavy-duty gearbox is attached to apply less force on tractor and reduce fuel consumption, and is fitted with a cooling system to allow for long-time work without overheating.
- Tillage capabilities: The power harrow's rotating blades are effective at breaking up large clods of soil and creating a flat, even surface, improving the soil's structure and moisture retention.
- Cage or packer roller: The power harrow is equipped with a cage or packer roller, which helps to evenly distribute the weight of the harrow and improve its performance.
- Versatility: Power harrows are available in compact and heavy-duty sizes with working widths ranging from 2.0m to 6.0m, making them suitable for a variety of farming operations.
- Folding design: Some power harrows are available with a folding design, which allows them to reach a working width of up to 6 meters.
- Rotor blades comes in different sizes and shapes which are all made from boron steel
Power Harrow Common Specifications and Parameters
| Model | CVPH-C300 | CVPH-C400 |
|---|---|---|
| Size(mm) | 1450*3115*1230 | 1530*4200*1420 |
| Weight(kg) | 1900 | 2400 |
| Working width(mm) | 3000 | 4000 |
| Working depth(mm) | 100～180 | 270～500 |
| P.T.O. shaft rotations(rpm/min) | 270～500 | 270～500 |
| Number of blades(pcs) | 12*2 | 16*2 |
| Matched power(kw) | 96.9~134.2 | 156.6~193.8 |
| Matched power(hp) | 130~180 | 210~260 |
